Intensity-Modulated photocurrent Spectroscopy simulation

import os, sys
try:
    import pySIMsalabim as sim
except ImportError: # add parent directory to sys.path if pySIMsalabim is not installed
    sys.path.append('..')
    import pySIMsalabim as sim
from pySIMsalabim.experiments.imps import *

Setup the simulation

# Set the path to the simulation setup file
cwd = os.path.abspath('..')
session_path = os.path.join(cwd, 'SIMsalabim','ZimT')
zimt_device_parameters = os.path.join(session_path, 'simulation_setup.txt')

# Set the impedance simulation parameters
tVG_name = os.path.join(session_path,'tVG.txt')
f_min = 1e-1
f_max = 5e6
f_steps = 20
V = 0.0
G_frac = 1
GStep = 0.05
# Run the IMPS simulation
ret, mess = run_IMPS_simu(zimt_device_parameters, session_path, f_min, f_max, f_steps, V, G_frac, GStep, run_mode=False, tVG_name = tVG_name, output_file = 'freqY.dat', tj_name = 'tj.dat')

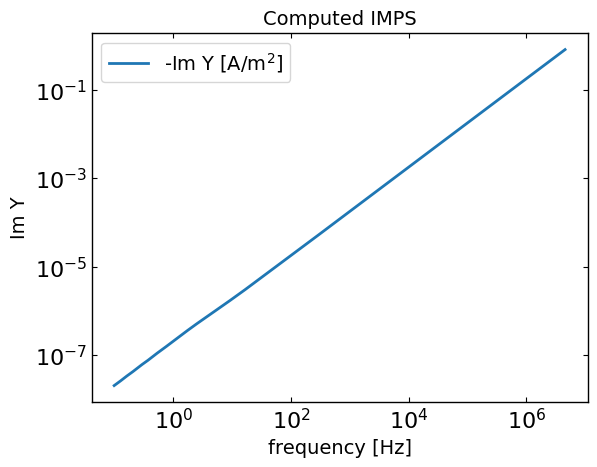

Plot results

plot_IMPS(session_path, output_file='freqY.dat')

# Clean up the output files (comment out if you want to keep the output files)
sim.clean_all_output(session_path)
sim.clean_up_output('freqY',session_path)
sim.delete_folders('tmp',session_path)
